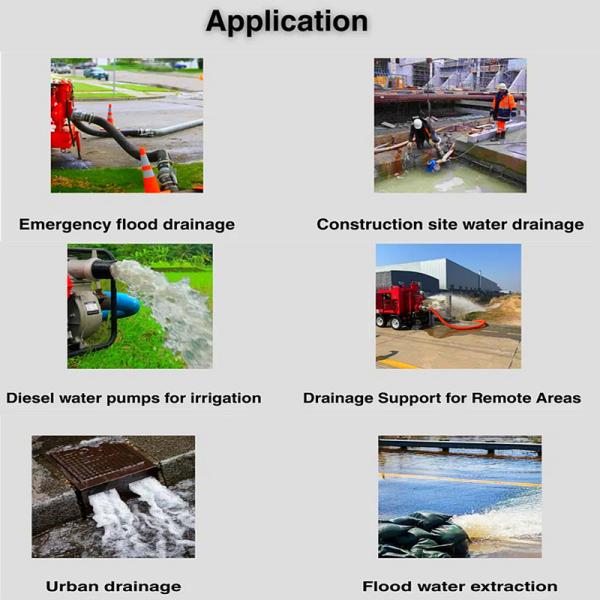

Multiple Water Source Compatibility: Designed to draw water from a wide range of sources, including rivers,
lakes, ponds, drainage ditches, and wells, making it invaluable in areas without direct access to pressurized water lines.
Portable diesel water pump the effect of high flow rate, high head, and high suction.
Easy to operate, one click quick start. It can solve problems such as farmland irrigation, urban drainage, and flood discharge.
If you need it, our company will be the right choice.
Advantages of diesel water pump unit
1.Adopt excellent hydraulic model and advanced manufacturing technology to greatly improve the performance and service life of the pump.
2.Since the shaft seal uses mechanical seals made of cemented carbide and fluororubber, it can improve the reliability of pump operation and the transmission of media.temperature.
3.The flow-passing part of the pump is stamped and welded by stainless steel plates, making the pump suitable for mildly corrosive media.
4.The overall structure is compact, small in size, light in weight, low in noise, significant in energy saving, and easy to maintain.
5.The water inlet and outlet of the pump are located on the same horizontal line as the pump base and can be directly used in the pipeline.
6.Using standard motor, users can easily equip the motor according to their needs.
7.Intelligent protectors can be equipped according to user needs to effectively protect the pump from dry running,phase loss, overload, etc.
Standard scope of Supply

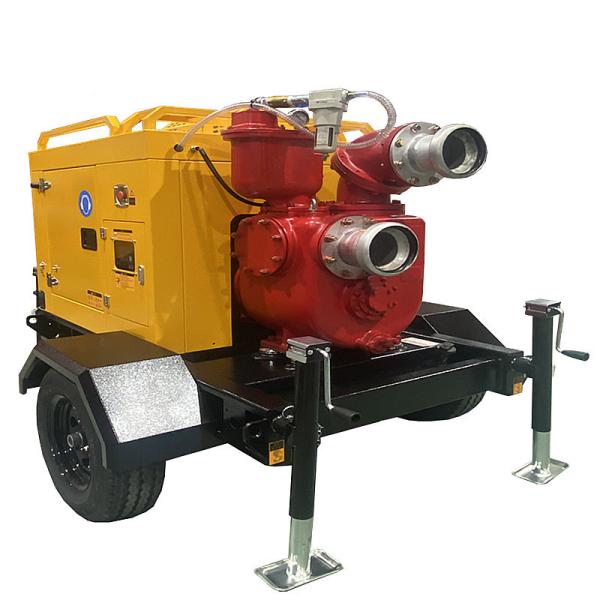

1). Diesel pump unit: Diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2). Standard design is the pump group, the fuel tank, control panel, battery composite type.
3). Can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.
4). Can be designed according to customer requirement trailer (four or two wheels) moveable type.
Structural characteristics
Pump shell, impeller, made of ductile iron or alloy material;
With access port, easy to daily maintenance;
Mechanical seal made of silicon carbide material;
Front and rear wear discs with rubber;
The whole body laser cutting, automatic welding, phosphating spray treatment.
Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| Model | SP450QZ-25TP | SP700QZ-20TP | SP1000QZ-20TP | SP1500QZ-20TP | SP2000QZ-15TP |
| Inlet & Outlet Port(mm) | 150 | 200 | 250 | 250 | 350 |
| Max.Flow (m3/h) | 450m3/h | 700m3/h | 1000m3/h | 1500m3/h | 2000m3/h |
| (DN150) | (DN200) | (DN200*2) | (DN200*3) | (DN200*4) |
| Max.Head (m) | 25 | 20 | 20 | 20 | 20 |
| Speed (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Solid Handing (mm) | 76 | 76 | 76 | 76 | 76 |
| Size L*W*H (mm) | 2000*1650*1765 | 2810*1730*1960 | 3300*1920*2400 | 2920*1760*2050 | 3500*2100*2300 |
The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
